Precision Injection Mold (0.02mm Tolerance)

We manufacture precision injection molds with tolerances up to 0.02mm for ABS, PP, PC, and other materials. As an ISO 9001 certified mold manufacturer, we serve customers requiring high-accuracy tooling with low MOQ starting from 1 piece.

Our molds are built with advanced CNC and EDM equipment, ensuring precise cavity geometry, excellent surface quality, and consistent production performance over a long service life.

Custom mold design and manufacturing service with trial and production support.

Product Parameters

• Material options: high-grade tool steel (S136, P20, H13) or per customer specification
• Process: precision injection mold design, CNC machining of mold components, EDM, polishing and assembly
• Cavity: single or multi-cavity tooling as required
• Runner system: cold runner or hot runner option
• Mold life: 300,000 – 1,000,000 shots depending on steel grade
• Deliverables: DFM report, T1 sample approval, mold trial and production samples

Applications

• Custom tooling for household appliances, consumer electronics and industrial products

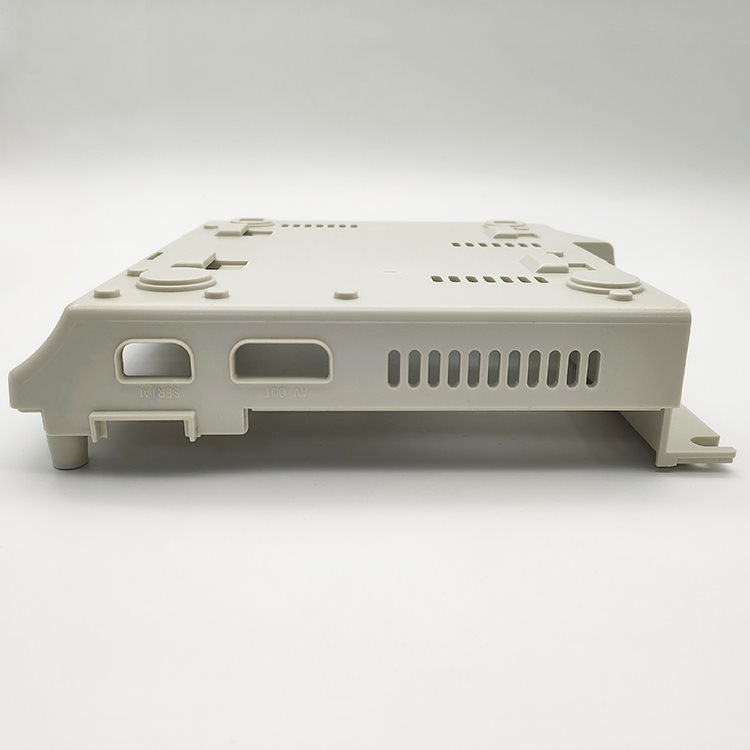

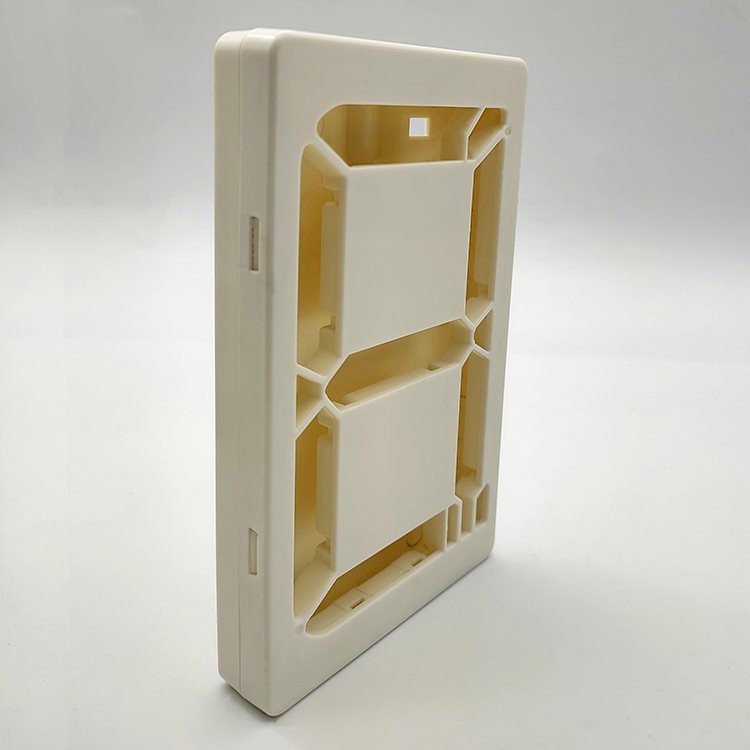

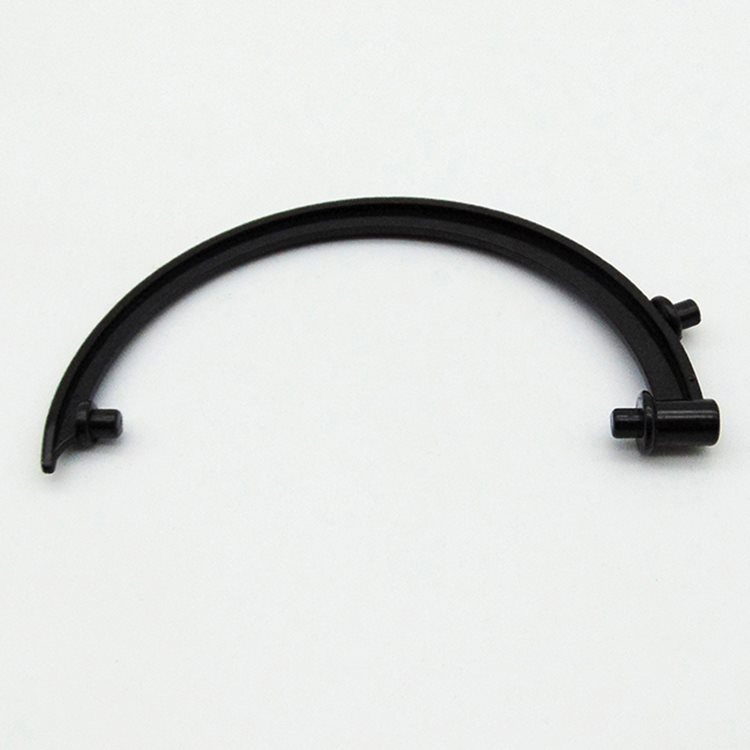

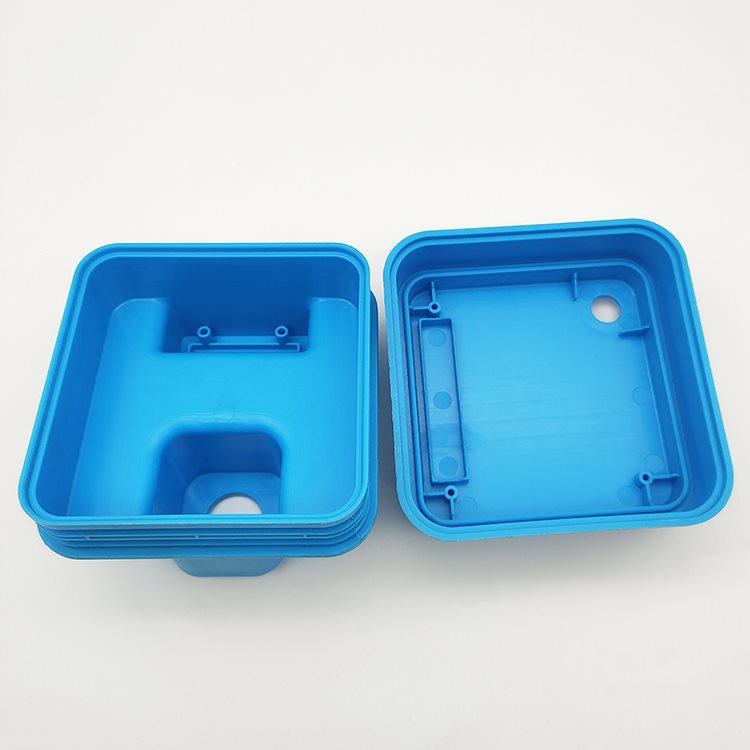

• Housings, handles, structural parts and mechanical components in ABS, PP, PC, PA, POM and other engineering plastics
• Small to medium batch production with consistent dimensional accuracy

Product Advantages

• Full in-house mold design and DFM service with free modification suggestions
• Precision machining to ±0.02 mm with polished cavities for high-gloss surfaces
• Experienced engineers support T1 trials and mass production ramp-up
• ISO 9001 certified process with strict quality inspection at every stage

Frequently Asked Questions

What mold steel do you recommend for mass production?

For production runs we commonly use S136 or NAK80 for polished cosmetic surfaces and P20/H13 for general-purpose tooling. Our engineers will recommend the best grade based on your material, volume and surface requirements.

Can you provide mold samples and DFM before tooling starts?

Yes. After receiving your 3D drawing, we provide a free DFM report with gate, parting line and shrinkage suggestions, then deliver T1 samples for approval before mass production.

What is the typical lead time for a custom injection mold?

A standard single-cavity mold is typically completed in 15–30 days depending on complexity, steel availability and cavity count.
